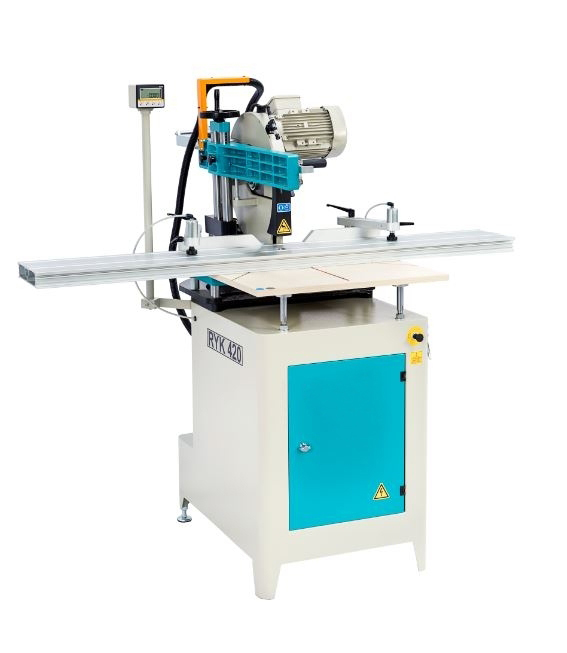

RYK 420 Heavy Duty Radial Saw

Our RYK 420 Radial Saw  is designed for straight ormiter cut operations of large size vinyl (PVC), aluminum and timber. The RYK 420 enables straight and miter cuts by means of the pivoting table and tilting head.

Technical Specifications

• Performing of different cutting operations are possible by means of the pivoting and tilting features
• Powerful cutting operations by means of the 2.2 kW, 3000 rpm motor
• Smooth movement, high precision and great sensitivity provided with gas spring , linear bearings and ergonomic handle
• 2 x pneumatic vertical clamps
• Cast iron construction of the body that is strong and lasting
• Robust mechanical construction enables the ease of adjustment for the requested cutting angles
• Location points at 15°-22,5°-30°-45°-60°-90°
• Pivoting range from 45° to 60° infinitely adjustable
• Tilting range from 90° to 45° left

Optional Equipment

• Saw blades for aluminum or timber
• Spray mist lubrication system
• Dynamic motor brake unit (1.5 kW-7.5 kW)
• Laser marker indicating the cutting line
• Digital display for ease adjustment of pivoting angle
• DKN 300 conveyor (3m (10’), 4.5m (15’) or 6m (20’))

Cutting Capacity (W x H)

• 90⁰ : 410 x 170 mm (16” x 6.7”)
• 45⁰ : 285 x 170 mm  (11.2” x 6.7”)
• 60⁰ : 205 x 170 mm (8” x 6.7”)
• 45⁰ : 410 x 95 mm (16” x 3.7”) (tilting)
